Provision of ECDIS equipment in co-operation with Navico



Otesat-Maritel in co-operation with Navico provides ECDIS equipment with the MARIS ECDIS900 MK15/MK5 system. The MARIS ECDIS900 MK15/MK5 is an IMO-type approved navigation system, designed for use aboard SOLAS vessels subject to ECDIS carriage mandates such as merchant cargo ships and tankers. Easy to use with a standard Windows PC interface, the ECDIS900 delivers precise navigation with comprehensive route planning and optimisation tools, integrated chart management and ordering, and radar overlay.

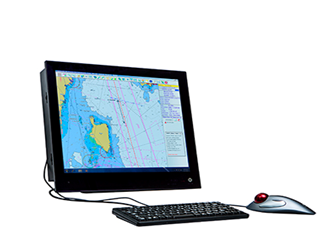

All-in-One PC Solution

The ECDIS900 MK15 includes a 19- or 24-inch ‘all-in-one’ flat panel display with integrated Windows PC, suitable for pedestal, table or flush-mount installation. The single-unit design, including four integrated NMEA0183 ports, dual Ethernet ports, and AC/DC power supply, allows for simple installation in a variety of locations, including consoles or tables with limited space where a separate display and ECDIS processor may prove impractical

Overview

  • 19- or 24-inch flat panel display with integrated PC
  • Standard Windows interface with keyboard and trackball controls
  • Advanced route planning and optimisation tools, with special-purpose modules including SAR planning
  • Precise navigation tools including position prediction and docking assistance
  • Radar overlay
  • Integrated chart management with online ordering and updates
  • Supports ENCs (PRIMAR, IC-ENC, UKHO AVCS), UKHO ARCS, Jeppesen Professional+ charts, AIO (Admiralty Information Overlay)
  • Choose between S-52 and INT1 chart presentation
  • Dual- or triple-station PLECDIS options for paperless navigation
  • Integration with BNWAS, Navtex, AIS, Autopilot, and Central Alarm system

Specifications

Display

DisplayModes

TFT active-matrix LCD with LED backlight

Display Resolution [pixels x pixels]

1920 x 1080 pixels

Display Size

610 mm / 24”

Brightness

300 cd/m2

Other

Interface Connector USB

4 x USB 2.0

Other Features

2x Ethernet

Technical/Environmental

Operating Temperature

-15°C to +55°C / 5°F to 131°F

Product Width

593 mm / 23.4”

Product Depth



Product Height

384 mm / 15.1”

Product Weight



Waterproof Standard/rating

IP66 (Front), IP22 (Rear)

Networking Connectors

NMEA 0183 Interface

NMEA0183 & RS422: 4 ports

Power

Power Consumption

50 W (Typical), 125 W (Max)

Power Supply (Supply Voltage)

115/230 V AC – 50/60 Hz, 24 V DC

Standard PC Solution

The ECDIS900 MK5 includes a standard Windows PC and separate 24- or 26-inch flat panel monitor suitable for pedestal, table or flush-mount installation. The compact MK5 PC supports horizontal or vertical mounting with an included bracket, or mounting within the optional ECDIS900 pedestal for a freestanding installation.

Overview

  • 24- or 26-inch flat panel monitor and standard PC
  • Standard Windows interface with keyboard and trackball controls
  • Advanced route planning and optimisation tools, with special-purpose modules including SAR planning
  • Precise navigation tools including position prediction and docking assistance
  • Radar overlay
  • Integrated chart management with online ordering and updates
  • Supports ENCs (PRIMAR, IC-ENC, UKHO AVCS), UKHO ARCS, Jeppesen Professional+ charts, AIO (Admiralty Information Overlay)
  • Choose between S-52 and INT1 chart presentation
  • Dual- or triple-station PLECDIS options for paperless navigation
  • Integration with BNWAS, Navtex, AIS, Autopilot, and Central Alarm system

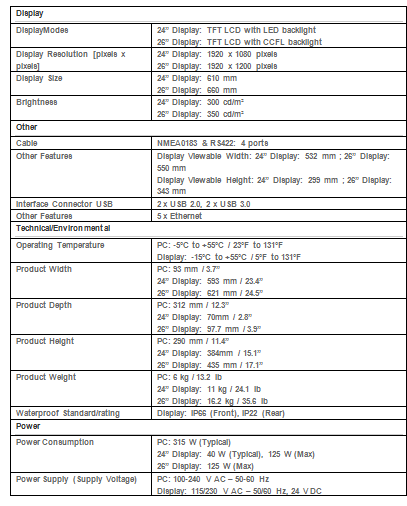

Specifications
